Mercedes CLA250, GLA250 Auxiliary Water Pump A0005000686

Mercedes CLA250, GLA250 Auxiliary Water Pump A0005000686
Mercedes CLA250, GLA250 Auxiliary Water Pump A0005000686 Mercedes CLA250, GLA250 Auxiliary Water Pump A0005000686 Mercedes CLA250, GLA250 Auxiliary Water Pump A0005000686

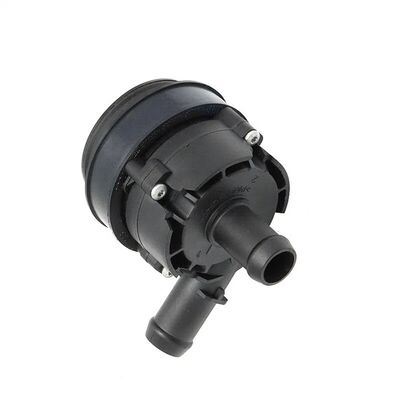

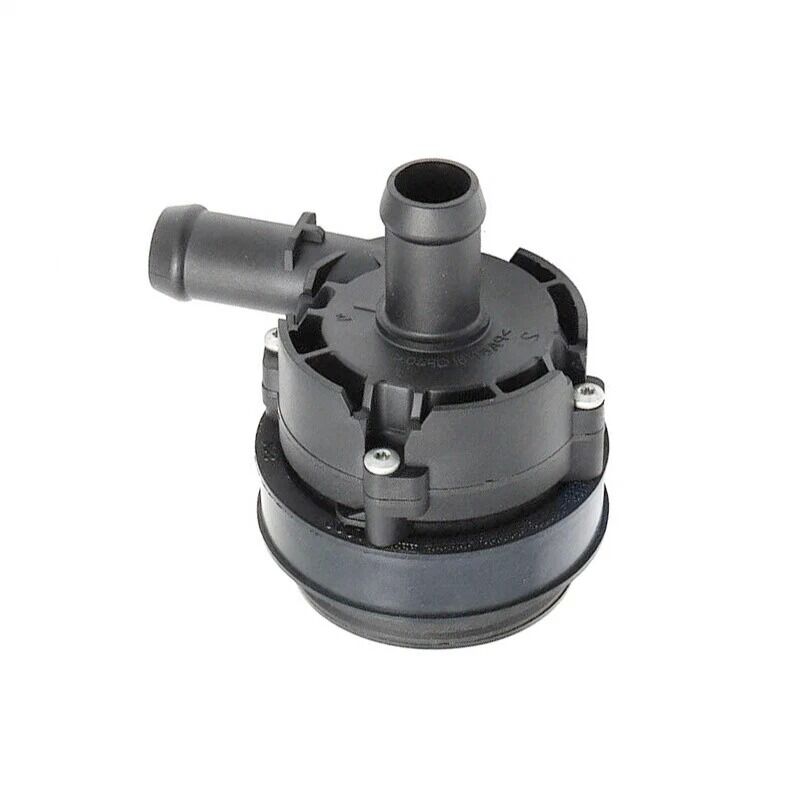

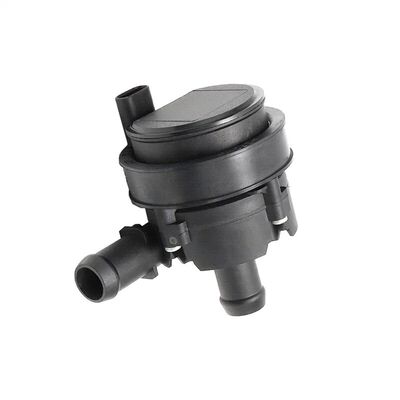

Large Image :  Mercedes CLA250, GLA250 Auxiliary Water Pump A0005000686

Product Details:
Place of Origin: China
Brand Name: Sigsell
Model Number: A0005000686
Payment & Shipping Terms:
Minimum Order Quantity: 20Pcs
Price: CN￥160
Packaging Details: carton packing
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Contact Now

Mercedes CLA250, GLA250 Auxiliary Water Pump A0005000686

Description
Flow Rate: 120 L/H Type: Electric
Weight: 0.5 Kg Application: Automotive
Inlet Diameter: 8 Mm Voltage: 12V
Pressure: 0.3 Bar Material: Plastic
Outlet Diameter: 8 Mm Notes: Array
Fiow: 2-160 M3/h Standard Voltage: 220-230 / 240V
Apply For: For Mercedes-Benz Usage: Car
Installation: Easy To Install Car Make: Mercedes-Benz
Other Names: Mercedes-Benz Water Pump Country Of Origin: China
Product: Water Pump Packing: Neutral Packing
Highlight:

Mercedes CLA250 auxiliary water pump

,

GLA250 replacement water pump

,

A0005000686 OEM water pump

Mercedes CLA250, GLA250 Auxiliary Water Pump - A0005000686
Stable Quality Auxiliary Water Pump with strong reliability. OEM compatible and customizable to meet specific requirements.
Product Description
Product Features:
  • Product weight: 0.3KG
  • Temperature tolerance range:
    • Medium temperature: -40℃ to +120℃
    • Ambient temperature: -40℃ to +120℃
Basic Performance:
  • Working voltage range:
    • DC18-32V / Rated voltage: DC24V
    • DC9-20V / Rated voltage: DC12V
  • Flow rate: 1600L/h @ 0.7bar / 2100L/h @ 0.5bar (Medium: 50% glycol solution)
  • Pump resistance: Under forward flow direction of 3000L/h, pressure loss less than 0.5bar
Specifications
Product Name Auxiliary Water Pump
OEM Number A0005000686
Car Model Mercedes-Benz
Brand Sigsell
Packing Neutral or as Customer Requirements
Sample Yes, but shipping cost needs to be repaid
Delivery 1-5 days for stock items, 10-15 days for items needing production
Technical Details
Additional Performance Specifications:
  • Noise: Microphone 50 cm away from water pump, noise value ≤ 60 dBA
  • Structural vibration: Maximum vibration speed ≤ 2.0mm/s
Product Features:
  • Speed control modes:
    • LIN bus mode, meets ISO LIN2.5 standard
    • PWM speed regulation
    • ON/OFF switch
  • Fault signal feedback
  • Blocked rotation protection (pump rotor stuck protection)
Reliability:
  • Air tightness: Pump gas to 500±100kpa, pressure loss rate < 0.3kpa/min
  • Solvent corrosion resistance, complies with IEC61000-4-2/IEC61000-4-3 standards
  • EMC electromagnetic compatibility, no electromagnetic interference
PWM Speed Regulation Wiring:
PWM or analog signal VR (0-5V) speed control wiring method: PWM speed control is suitable for MCU control, detecting pulse width of PWM signal to achieve speed control function (PWM frequency within 2K). Advantages include stable speed control, unaffected by current and peripheral components. PWM (50-800HZ signal amplitude 5V) or analog signal (0-5V) speed regulation requires connecting the yellow line to the speed regulation signal generation port, black line to system ground wire, and leaving red line unconnected.
Frequently Asked Questions
Are you a manufacturer?
Yes, Beijing Hongtong is a professional manufacturer established in 2015.
Can you do design for us?
Yes, we provide OEM and ODM services. We have extensive experience understanding buyer preferences and arranging development.
Can you handle small orders?
Yes, we maintain stock for many popular models to support clients' business needs. We can handle small custom orders, though additional costs may apply for printing depending on details.
How to place an order?
Select items and quantity → Confirm details → We quote price → Provide shipping address → We create proforma invoice → Make payment.
